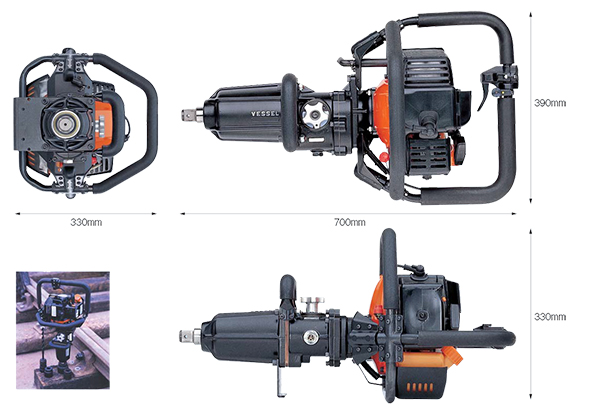

Gasoline Impact Wrench Specifications

MODEL No.

GT-3500GE Gasoline Powered Impact Wrench

ENGINE Type
Displacement
Fuel Tank Capacity
Fuel Mixture Ratio
Revolutions (Rev)
Revolutions (impact load)
Revolutions (no load, max)
Two-Stroke, Forced, Air Cooled, Single Cylinder
46.5cc, Ø43x32mm (inner bore size x stroke)
1 Liter
25:1 (gasoline:2 cycle oil)
2700 rpm ±250
7120 rpm
9880 rpm

TRANSMISSION Settings
Forward, Reverse, Neutral

IGNITION Type
Spark Plug Type
Electronic
NGK BPMR6A

CARBURETOR Type Diaphragm

IMPACT Square Drive Size
Fastening Torque Range
25.4mm (1")
1700 N.m (Full throttle: 1255 ft.lbf)
950 N.m (Half throttle: 701 ft.lbf)
1200 rpm

CAPACITY Bolt Diameter 32mm (1/1/4")

WEIGHT Without Fuel 19.50kg (42.99 lbs)
